Features of the Rig Vision Real-Time Web Monitoring system:

  • Tabbed interface with a tree view makes navigation and access to information more obvious and easy to use.
  • Real-time screens open in a new tab in the browser, but can also be popped out into a separate browser window, providing more flexibility.
  • Real-time screens can be configured directly on the screen.
  • Parameter alarms can be set for each well for each user.
  • A map interface that will show you well locations on a map display.
  • The back end of the system is load balanced, providing the ability to support more systems and end users with less disruption.
  • Carries any data provided via 3rd party WITS level zero feed.
  • WITSML Store provides users with 24/7 access to all data gather by our EMSIV Rig Monitoring System.

rig vision

User Interface

The well real-time data can be displayed on text screens, strip chart screens, and drill screens. The user can create and save as many screens as they need. All objects are property based. This means at any time the user can easily modify their screens by clicking on an object and selecting which parameter to view, a color scheme to use, set scales on a graph and set alarm points from one popup property box. All of this is done with no interruptions to the data flow.

The screen properties can be set or changed by using the Screen Property Wizard.

Text Screens

Users will be able to select the number of rows and columns for each text screen. Clicking on a Text Box allows the user to select which parameter to view, a color scheme to use and set alarm points from one popup property box.

Strip Chart Screens

The strip chart can display depth, time, or time and depth data. Users are able to select the number of tracks for their strip chart and the number of parameters on each track. They also can select the parameters and colors. Annotation added on location will also display on the website strip charts. All strip charts scales both vertical and horizontal and alarm points are easily adjustable. The strip charts can scroll forward, backwards and can zoom in and out throughout the entire well.

Drill Screens

Drill screens will allow the user to watch both text and graphical data on the same real time screen. They will be able to easily configure and modify these screens as needed.

War Room Screen

View multi-wells at the same time in an easy-to-view spreadsheet style format. Parameters, colors & alarms can easily be set by using its property box.

Well Comparison

The Well Comparison feature allows the user to load multiple wells to compare side by side. Each well has a scroll bar to allow the user to match trends and lock the graphs in view or produce reports.

Reports

The users can create graphical and numerical reports. The reports can be saved in templates so that they can be used to generate reports as needed. Numerical reports display columns of time or depth data. They can be saved as Adobe PDF, Microsoft Word, Microsoft Excel, or CSV files. LAS depth files can also be created. Scaled graphical reports can be easily created and displayed on the screen, saved to Adobe PDF files, or printed.

Map

This mapping tool can be used to locate a user’s wells based on the latitude and longitude of the rig. The user is able to view the location of a well on a map. They can pan and zoom in and out of the map at will. Satellite and ground view is also available with this feature.

Rig Vision Mobile

rig vision web monitoring on mobile
rig vision mobile

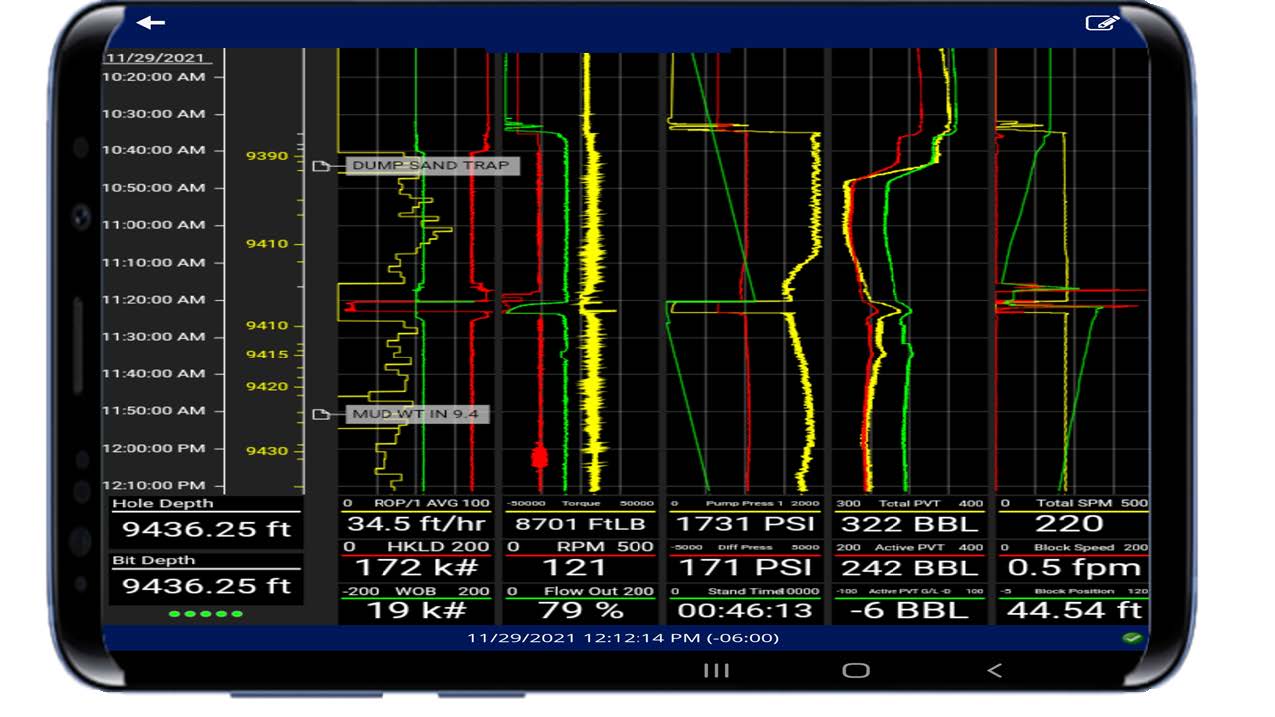

This mobile website allows users to view their rig data via their mobile devices. Strip charts, text screens and map are available 24/7 using an Android or iOS operating system.

Rig Vision Mobile is incredibly flexible, allowing users to monitor all drilling parameters including data provided by other service companies. Screens can be easily customized to meet the needs of the user from their smart phone or mobile device.

iOS Devices

Android Devices

With a simple login and password, customers can log on securely from their mobile device browser, select their well and view their data in a matter of seconds. Navigation buttons make it easy to toggle between screens.

For more information on how we can provide Rig Vision Real-Time Web Monitoring for your company, send us an email or call our corporate office.
